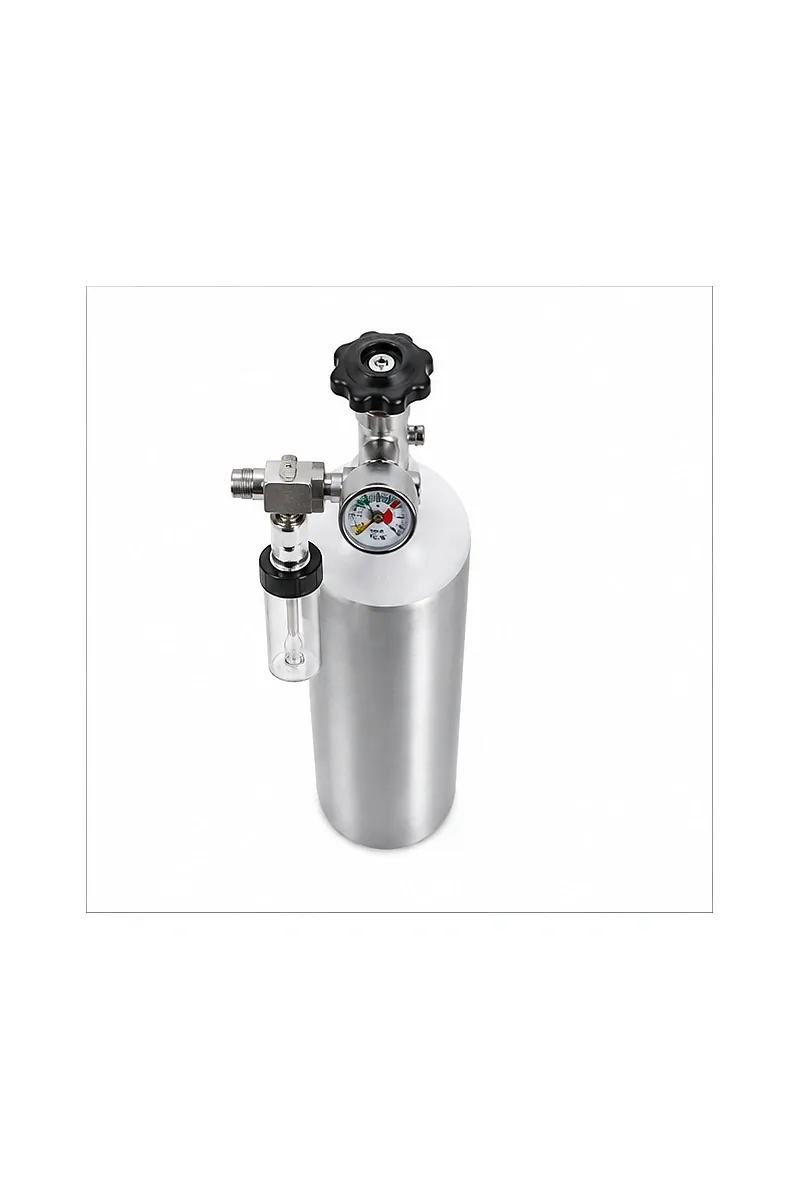

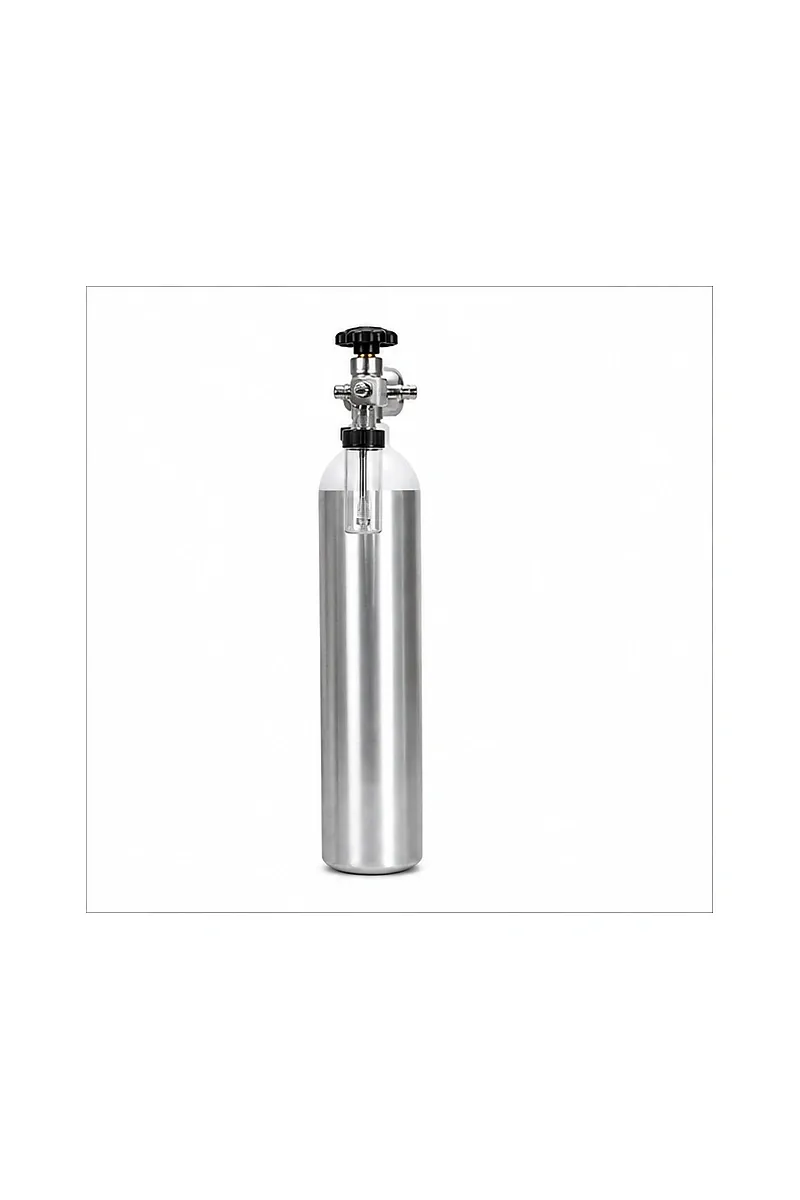

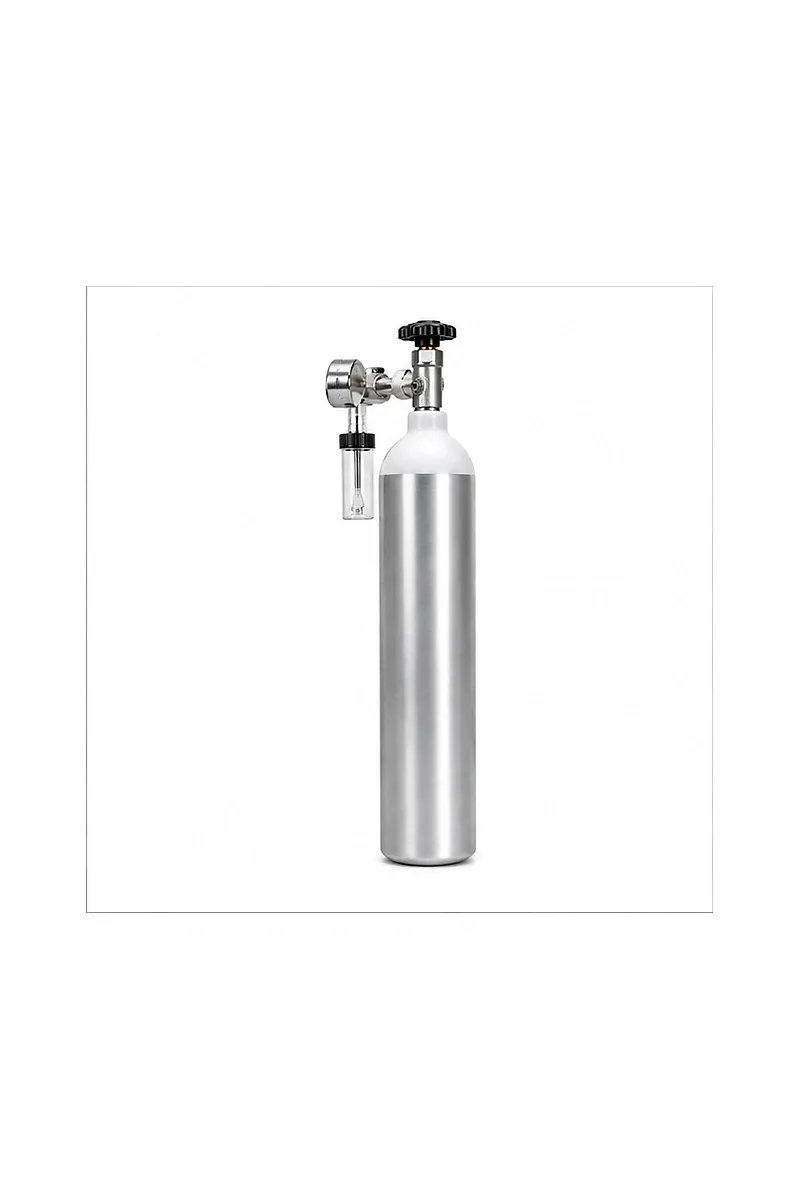

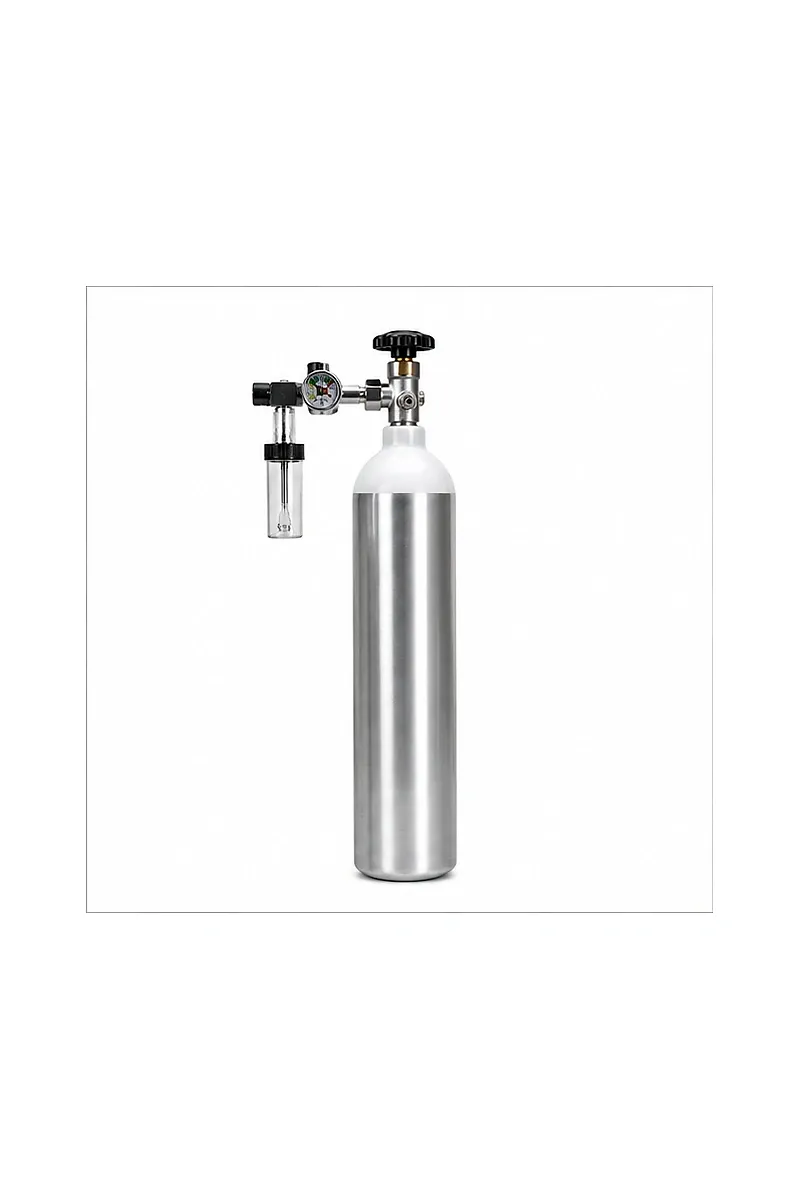

The 10 Litre Medical Oxygen Cylinder is designed for the safe storage and transportation of medical oxygen, making it suitable for hospitals, clinics, ambulances, emergency medical services, and home healthcare applications. Manufactured in compliance with IS 7285 Part II standards, this cylinder offers reliable performance, durability, and safety for medical oxygen use.
With a 10-litre water capacity and approximately 1500 litres of oxygen gas capacity, the cylinder is built to operate at a maximum working pressure of 150 kgf/cm² and is tested up to 250 kg/cm² for enhanced safety and reliability. Its robust steel construction with a 4.2 mm wall thickness ensures long-lasting durability, while the IS 3224 compliant valve provides secure and efficient gas flow control.
The cylinder weighs approximately 15 kg (tare weight) and measures 865 mm without the valve and 940–950 mm with the valve, making it suitable for easy handling and transport. It is supplied empty and includes the required CCOE (Explosive) Certificate, ensuring compliance with applicable safety regulations.
Whether used in healthcare facilities or emergency response situations, this oxygen cylinder delivers dependable performance and meets the stringent standards required for medical oxygen storage.
Key Features
- 10 Litre Water Capacity with approximately 1500 Litres Gas Capacity
- Designed specifically for Medical Oxygen
- Maximum Working Pressure: 150 kgf/cm² at 15°C
- Test Pressure: 250 kg/cm² at 15°C
- Durable steel construction with 4.2 mm wall thickness
- IS 7285 Part II compliant cylinder
- IS 3224 standard valve
- Includes CCOE (Explosive) Certificate
- Suitable for hospitals, clinics, ambulances, emergency services, and home healthcare
- Supplied empty (oxygen gas not included)
Specifications
- Product Type: Medical Oxygen Cylinder
- Water Capacity: 10 Litres
- Gas Capacity: Approximately 1500 Litres
- Working Pressure: 150 kgf/cm²
- Test Pressure: 250 kg/cm²
- Wall Thickness: 4.2 mm
- Tare Weight: Approx. 15 kg
- Height (Without Valve): 865 mm
- Height (With Valve): 940–950 mm
- Cylinder Standard: IS 7285 Part II
- Valve Standard: IS 3224
- Certification: CCOE (Explosive) Certificate
